Key Switch_S106,S116

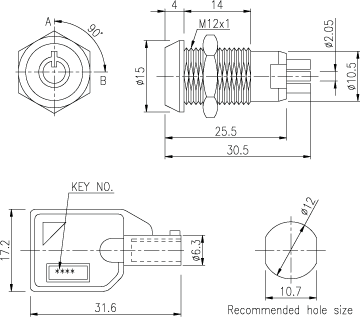

- Product description: S106, S116 Ø12
Product introduction
Specification:
• 200 Combinations available.
• 1A 125VAC, 0.5A 250VAC.
• Contact resistance : 10 m ohm max.
• Insulation resistance : 200 M ohm min. (500VDC)
• Dielectric strength : 1,000 VAC-1 minute.
• Housing: zinc alloy die cast, chrome plated.
• Zinc alloy keys, chrome plated with plastic cover.
• Silver plated contacts and terminals.
• 4 pins tumbler mechanism.

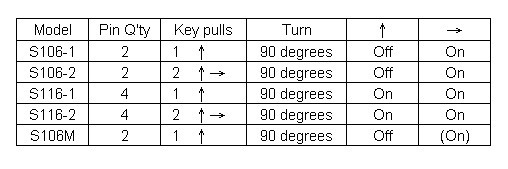

• S106 2 Positions (off-on) 2 Terminals.
• S106 2 Positions (on-on) 4 Terminals.
• S106M 2 positions (off-on) spring loaded for momentary contact.
