Key Switch_S331/S332/S333

Product introduction

Specification:
• Zinc alloy die cast housing and nylon cylinder.
• Bright chrome plated standard.
• 3 disc tumbler mechanism.
• Brass keys, nickel plated, with plastic cover.
• Key may be withdrawn in one or both or three positions.
• Silver plated contacts and terminals.
• Hex nut or speed clip mounted.
• All keyed alike or 16 combinations standard.
• 16 combinations available.

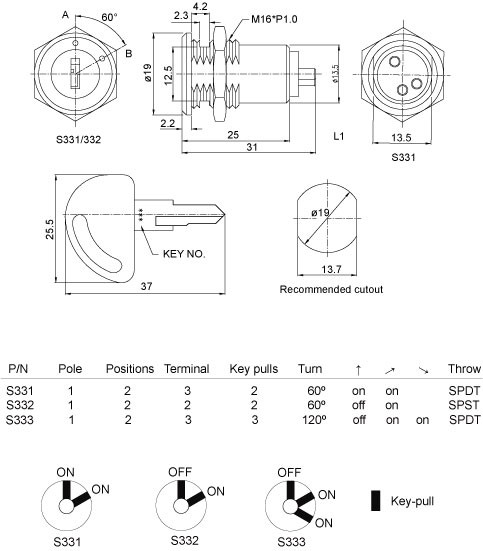

•  S331 2 position (on-on) 60 index 3 terminals.
•  S332 2 position (off-on) 60 index 2 terminals.
•  S333 3 position (off-on-on) 60 index 3 terminals.
