Key Switch_NS117

Left

Right

Key Switch_NS117

Product description: Slim keylock switches, suitable for electric bike, motors NS117 keylock switch is slim in size, perfectly suitable for an installation in limited space. ON-OFF, SPST, with 90 degrees rotation key.

Product introduction

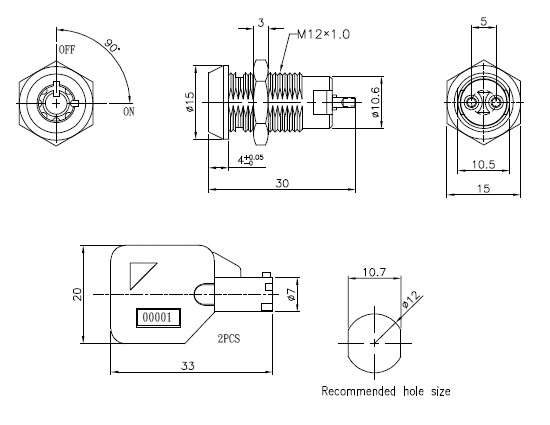

Specification:

Rating: 0.2A 125VAC
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
7 pin tumbler mechanism.
Single pole, single throw
Zinc alloy tubular keys, chrome plated, with plastic cover.
Key withdrawn in one or both positions.
Silver plated contacts and terminals.
2 position (off-on, 90 degrees turnkey), 2 terminals
Hex nut mounted.
All keyed alike or one combination per 100pcs standard.
5000 combinations available.
