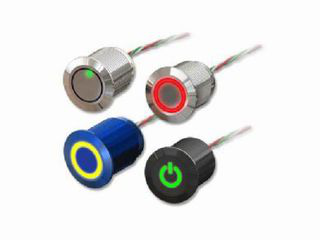

TOUCH KEY SWITCHES
- 產品描述：TOUCH KEY SWITCHES
產品介紹
TOUCH KEY SWITCHESTK SERIES
CONTACT RATING: 200mA / 1.5A @ 5~30VDC.
ELECTRICAL LIFE: 1 million cycles at full load.
CONTACT RESISTANCE: 20m-ohms max.
INSULATION RESISTANCE: 600VDC 10M-ohms min.
ESD RESISTANCE: ± 2KV (25 contact) / ± 8KV (25 air discharge).
OPERATING TEMPERATURE: -40°C to +125°C.
IMPACT RESISTANCE PROTECTION: IK02 (PC) / IK10 (Metal).
WATER-PROOF PROTECTION: IP68.
UV RESISTANCE: UVA / UVB.
MATERIALS:
KEY: Stainless steel / Aluminum / PC.
LENS: PC (UL 94V-0).
BODY: Stainless steel / Aluminum / PC.
CABLE: UL1007 24AWG.
TERMINAL: Brass silver plated.
