19mm Metal switch MPB Series

產品描述：19mm Metal switch MPB Series

產品介紹

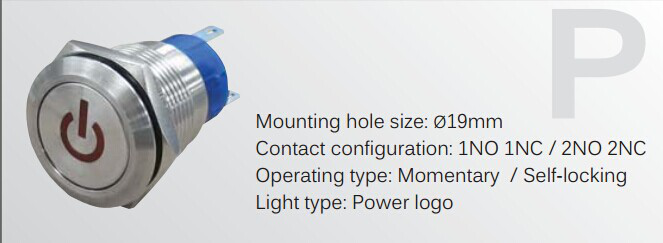

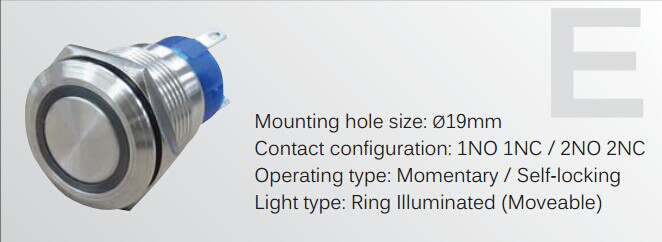

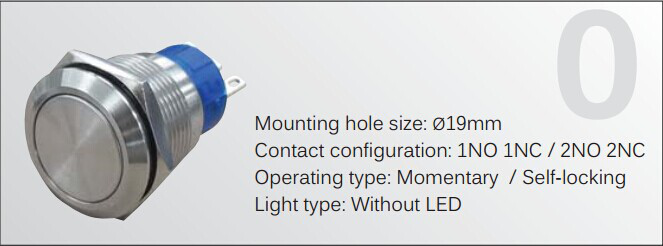

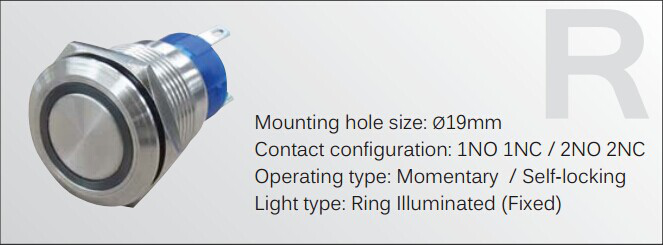

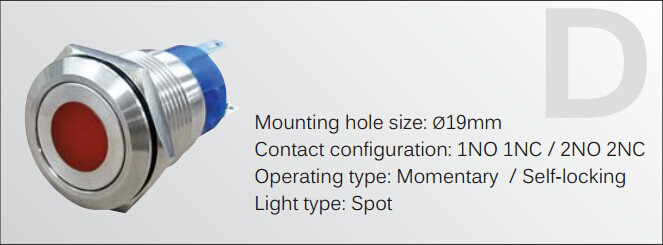

19mm Metal switch MPB Series

Features / 特色
重量輕，尺寸短，客製化
Light weight, short size, customized
Application / 應用範圍
適用於工控產品和醫療和通訊
Industrial remote controller,Medical,Communication

Rating : Ith 5A/250VAC resistive load 3A/250VAC
Contact Resistance : 50 m Ω max. @ 1A 12VDC
(initial value)
Insulation Resistance : 1,000 M Ω min. at 500VDC
Dielectric Strength : 2,000V RMS @ sea level
Operation Temperature : -20°C to 55°C
Mechanical Life : Momentary 1,000,000 cycles
Self-lock 500,000 cycles
Electrical Life : 50,000 make-and-break cycles
at full load
Torque : 5~14Nm
Panel Thickness : 10mm (Ø19.20mm)
Operation Pressure : 1Pole 1.5~2.5N
2Poles 2.2~3.5N
Travel : About 3.2mm

Ingress protection : IP67, IK10(Stainless)
