G9 Series

產品描述：IP67, 0.1A or 5A 125/250VAC Sealed Subminiture Micro Switch

產品介紹

Feature:
• Safety approved internationally by cURus in North America, Nemko ENEC in Europe, CQC in Asia
• Wire type is with IP67 protection level (Nemko ENEC17, CQC), terminal type is without waterproof.
• SPST-NC, SPST-NO or SPDT

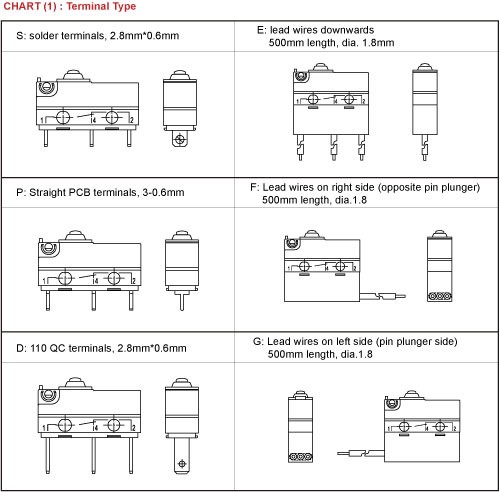

• Wide range of wiring terminals and levers
• With or without posts, left side or right side posts
• Applications in automotive electronics, appliance and Industrial control

Specification:
• G905: 5A 125/250VAC (cURus), 6A 125/250VAC μ25T120 1E4 (Nemko ENEC17, CQC)
• G9P1: 0.1A 125/250VAC 48VDC(cURus); 0.1A 125/250VAC 48VDC μ25T120 5E4 (Nemko ENEC17, CQC)
• Initial contact resistance : 100m ohms MAX.
• Insulation resistance : 100M ohm MIN. at 500VDC
• Dielectric strength : 1000VAC (50~60Hz)
• Electrical life : 6,000 cycles min.

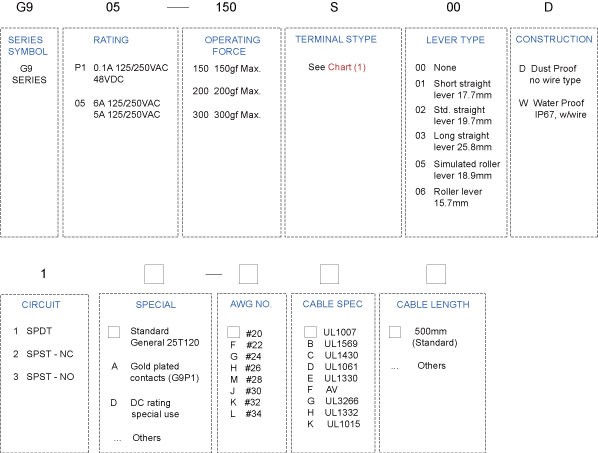

How to Order

· :
