Your position: Home > Push Switch

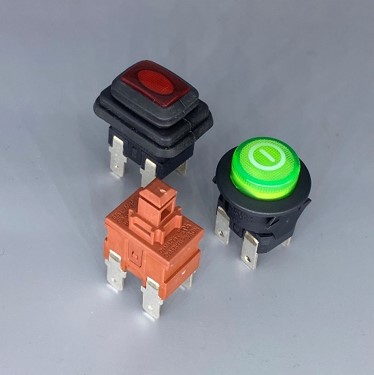

Push switch

Left

Right

Push switch

Product description: MAIN POWER SWITCHES 15A 250VAC DPST,SPST, cleat or snap in 13X19mm, illuminated Up to 15(15)A, Can be mounted by snapin, cleating Illuminated or none illuminated

Product introduction

12(8)A 250VAC T105
12(10)A 250VAC T105
12(12)A 250VAC
15(15)A 125VAC~ T05
3/4 HP125-250VAC
Initial contact resistance : 20m max.
Insulation resistance : 100M min, at 500VDC
Dielectric strength : 1,000 VAC for 1 minute

Base : Nylon 66/PBT, UL rated 94V-2 min
Actuator : Nylon 66/PC, UL rated 94V-2 min
Spring : Piano wire
Contacts : Silver alloy
Terminal : Silver plated copper
IP65 protection level available for rubber-boot mounted actuator ( passing MIRDC's TAF laboratory test )

PREVIOUS：FH1 Series NEXT：Push switch
