Your position: Home > Fuse Holder

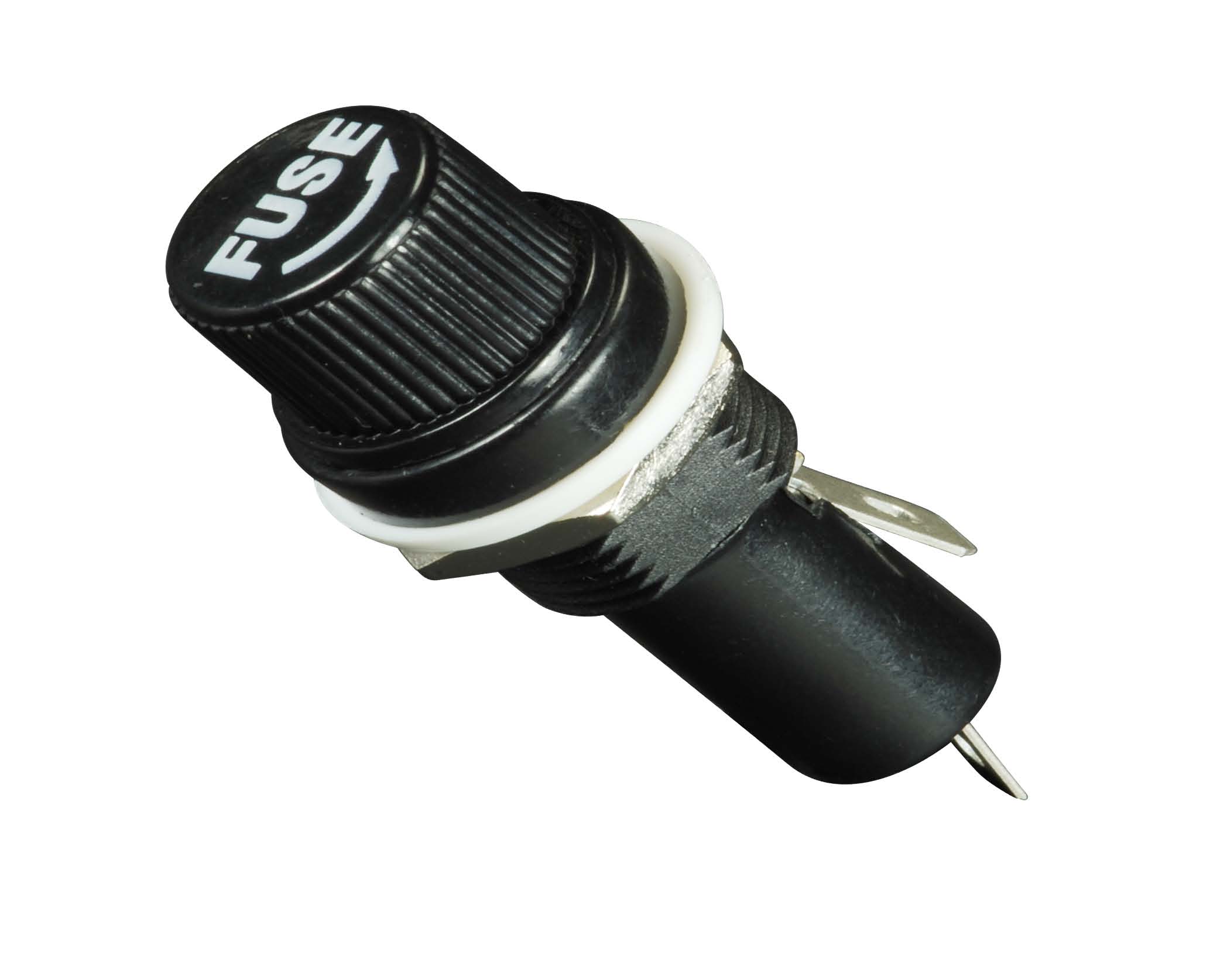

FH1 Series
- Product description: FOR 5*20mm or 6*30mm Fuses
Product introduction
Specifications:- Rated voltage: 250V
- Rated current: 10A
- Size: 5x20mm, 6x30mm
- Nut metal or plastic
- Suitable for electric circuit, the distributing box, and switches cabinet devices of plug type fuse
- Screw-in mounting cap: screw type
- Operating temperature: -25 to 85 degrees Centigrade
- Terminal: brass, sliver or tin-plated
-
