DM Series - copy
- Product description: Rating 1A or 3A Subminiature snap action switches up to 3A 125VAC SPDT
Product introduction
|
Feature:

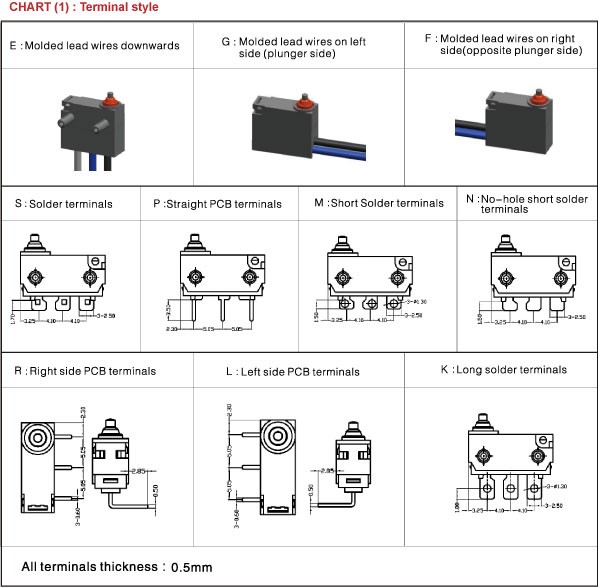

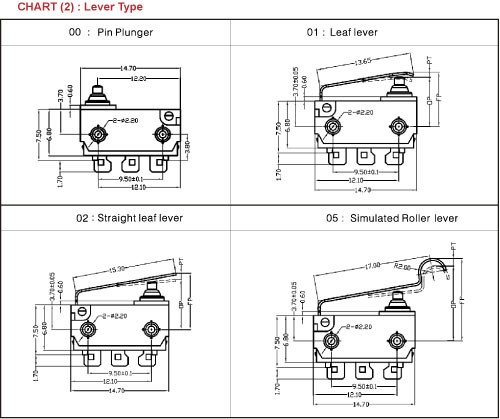

• Safety approved internationally by cURus in North America, Nemko ENEC in Europe, CQC in Asia • IP67 protection level for wire type (Nemko ENEC17, CQC) • SPST-NC, SPST-NO or SPDT • Wide range of wiring terminals and levers • With or without posts, left side or right side posts • Applications in automotive electronics, appliance and Industrial control Specification: • 0.1A 125/250VAC 48VDC, 3A 12VDC (cURus) • 0.1A 125/250VAC 48VDC, 3A 12VDC μ40T85 1E5 (Nemko ENEC17, CQC) • Initial contact resistance : 100m ohms MAX. (without wire type) • Insulation resistance : 100M ohm MIN. at 500VDC • Dielectric strength : 500VAC (50~60Hz) • Electrical life : 6,000 cycles |
|||
|
|||
|
