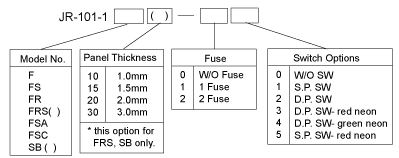

JR-101 Series
- Product description: MULTI-FUNCTION SOCKET, UP TO 10A 250VAC Power inlet with fuse holder or switch
Product introduction
|
Specification: |
· Rating: 10A 250VAC (UL)
· Withstand voltge: AC 2000V 1Min
· Insulation Resistance: More than 100M ohms at DC 500V
· Operating Temperature: -25 ~ +85 degress C
· Material:
· Housing: Nylon#66 UL 94-V0 or V2
· Terminal: Psp1-1/2H
Holder spec: for 5*20mm fuse
