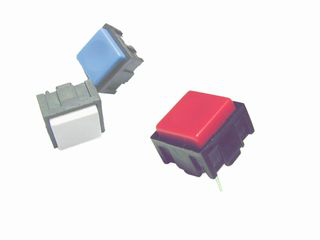

PS19-1
- Product description: PS19-1
PUSHBUTTON SWITCHES UP TO 0.5A 30VDC PCB MOUNTING
Product introduction
PS19-1PUSHBUTTON SWITCHES UP TO 0.5A 30VDC

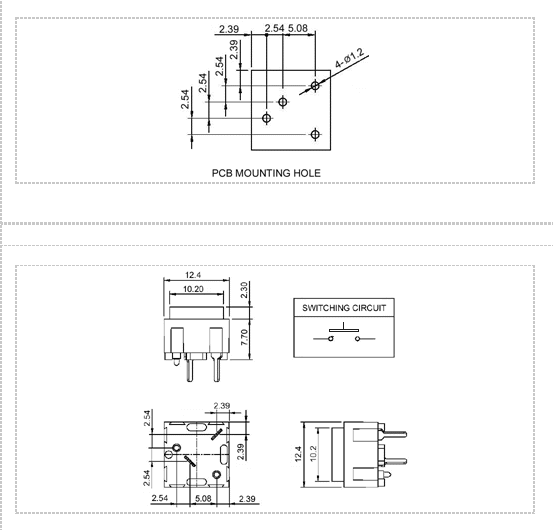

PCB MOUNTING
0.25A 50VDC/125VAC, 100,000cycles.
0.5A 30VDC, 10,000cycles.
Insulation resistance : 100M ohm min.
Total travel : 0.45±0.15mm.
Contact resistance : 150m ohm max.
Dielectric withstanding voltage: 1000VAC for 1 minutes.
Actuator : ABS (UL rated 94V-2 min).
Body : PBT (UL rated 94V-2 min).
Snap dome : Nickel plated stainless steel.
Terminals : Silver plated copper.
