2U Series

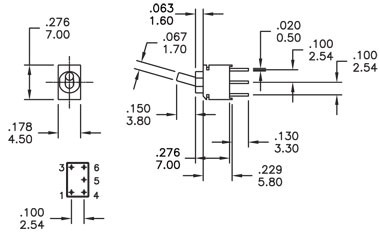

- Product description: Size: 7x 4.5 mm Sealed Ultraminiature Toggle Switch
Product introduction
SPECIFICATIONS:
MECHANICAL LIFE: 40,000 make – and – break cycles.
CONTACT RATING: 0.4VA max.@20VAC or DC max
CONTACT RESISTANCE: Below 100MΩ typ. Initial @ 2-4VDC,100 mA
INSULATION RESISTANCE: 500MΩmin.
DIELECTRIC STRENGTH: 500Vrms min@sea level.
OPERATING TEMPERATURE: -30℃ to 85℃.
OPERATING TEMPERATURE: -30℃ to 85℃.
MATERIALS
HOUSING AND BASE: Glass filled nylon 66 or 4/6 flame retardant,heat stabilized(UL94V-0).
ACTUATOR: Glass filled nylon6/6 ,flame retardant ,heat stabilized (UL94V-0),with standard internal o-ring seal.
SWITCH SUPPORT: Steel, with nickel plate.
CONTACTS/TERMINALS: Silver or gold plated copperalloy.
