Rocker Switch-4M Series
- Product description: Rating: 120VAC 3A/250VAC 1A Sub-Miniature Rocker Switches
Product introduction
Rocker switch _4M SeriesRating: 120VAC 3A/250VAC 1A
Sub-Miniature Rocker Switches
Specifications:
Contact Rating: Dependent upon contact material.
Mechanical Life: 30,000 make – and – break cycles.
Contact Resistance: 20MΩmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
Insulation Resistance: 1,000MΩ min.
Dielectric Strength: 1,000V RMS min@sea level.
Operating Temperature: -30℃ to 85℃.
Materials
Case: Diallyl phthalate (DAP) (UL94V-0).
Actuator: Nylon, black std.
Bushing: Brass or zinc, nickel plated.
Housing: Stainless steel.
Switch Support: Brass , tin plated.
Contacts/Terminals: Brass with Silver or gold

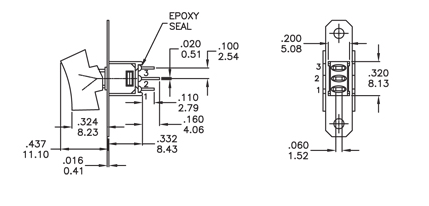

4M基本尺寸
