Touch Key SW

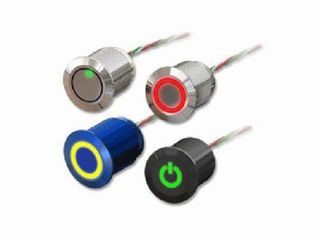

- Product description: TOUCH KEY SWITCHES TK SERIES
Product introduction
Specification:
- CONTACT RATING: 200mA / 1.5A @ 5~30VDC.
- ELECTRICAL LIFE: 1 million cycles at full load.
- CONTACT RESISTANCE: 20m-ohms max.
- INSULATION RESISTANCE: 600VDC 10M-ohms min.
- ESD RESISTANCE: ± 2KV (25 contact) / ± 8KV (25 air discharge).
- OPERATING TEMPERATURE: -40°C to +125°C.
- IMPACT RESISTANCE PROTECTION: IK02 (PC) / IK10 (Metal).
- WATER-PROOF PROTECTION: IP68.
- UV RESISTANCE: UVA / UVB.
- MATERIALS:
- KEY: Stainless steel / Aluminum / PC.
- LENS: PC (UL 94V-0).
- BODY: Stainless steel / Aluminum / PC.
- CABLE: UL1007 24AWG.
TERMINAL: Brass silver plated.
