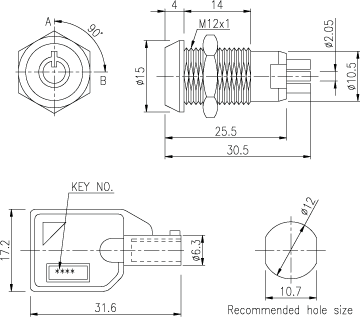

Key Switch_S106,S116

Specification:
•  200 Combinations available.
•  1A 125VAC, 0.5A 250VAC.
•  Contact resistance : 10 m ohm max.
•  Insulation resistance : 200 M ohm min. (500VDC)
•  Dielectric strength : 1,000 VAC-1 minute.
•  Housing: zinc alloy die cast, chrome plated.
•  Zinc alloy keys, chrome plated with plastic cover.
•  Silver plated contacts and terminals.
•  4 pins tumbler mechanism.

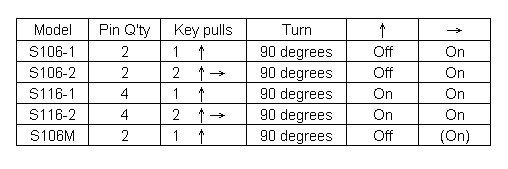

•  S106 2 Positions (off-on) 2 Terminals.
•  S106 2 Positions (on-on) 4 Terminals.
•  S106M 2 positions (off-on) spring loaded for momentary contact.
