Key Switch_S286

產品介紹

Specification:

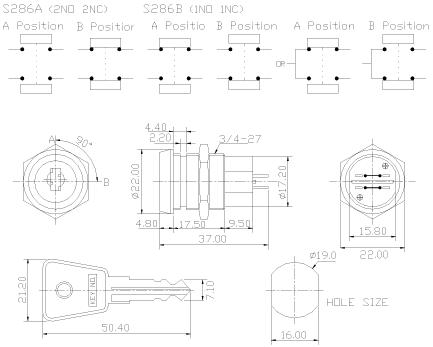

·  S286A 2 Positions (off-on) 4 Terminals. (2NO.2NC)

·  S286B 2 Positions (on-on) 4 Terminals. (1NO.1NC)

·  150 Combinations available.

·  Contact rating : 4A 125VAC, 2A 250VAC.

·  Contact resistance : 10 m ohm max.

·  Insulation resistance : 500 M ohm min. (500VDC)

·  Dielectric strength : 1,500 VAC-1 minute.

·  Housing: zinc alloy die cast, chrome plated.

·  5-Disk tumblers mechanism.

·  Reversible double cut key brass made nickel plated.

·  Silver plated contacts and terminals.

·  All keyed alike or 25 combinations standard, 150 combinations available.
