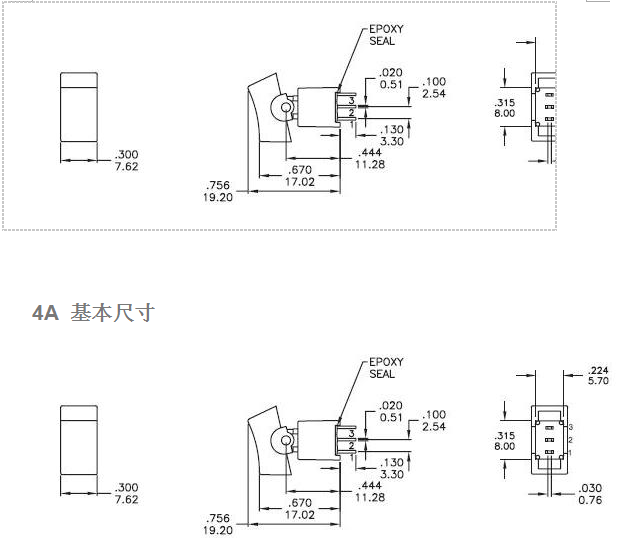

防水船形开关-4A Series

產品描述：防水船形开关-4A Series
产品分类：超小型防水船形开关
规格参数
额定值: 120VAC 3A/250VAC 1A
功率：Dependent upon contact material
机械寿命: 30,000 make – and – break cycles.
接触电阻: 20Ωmax .initial @ 2-

產品介紹

防水船形开关-4A Series
产品分类：超小型防水船形开关
规格参数
额定值: 120VAC 3A/250VAC 1A
功率：Dependent upon contact material
机械寿命: 30,000 make – and – break cycles.
接触电阻: 20Ωmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
绝缘电阻抗: 1,000MΩ min.
绝缘强度: 1,000V RMS min@sea level.
工作温度范围: -30℃ to 85℃.
使用材质
外壳&铜头: Glass filled nylon 6/6, flame retardant,heat stabilized (UL94V-0).
翘板: Nylon, black std.Internal O-ring seal standard with all actuators.
支撑支架: Brass or steel, tin plated.
端子/弹片: Silver or gold plated copper alloy

Rocker switch _4A Series
Rating: 120VAC 3A/250VAC 1A
Sealed Sub-Miniature Rocker Switches
Specification:
Contact Rating: Dependent upon contact material.
Mechanical Life: 30,000 make – and – break cycles.
Contact Resistance: 20Ωmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
Insulation Resistance: 1,000MΩ min.
Dielectric Strength: 1,000V RMS min@sea level.
Operating Temperature: -30℃ to 85℃.
Materials
Case & Bushing: Glass filled nylon 6/6, flame retardant,heat stabilized (UL94V-0).
Acuator: Nylon, black std.Internal O-ring seal standard with all actuators.
Switch Support: Brass or steel, tin plated.
Contacts/Terminals: Silver or gold plated copper alloy
