HB-A Series

產品介紹

Features

Safety approved internationally by UL & CUL in North America, VDE, ENEC in Europe, CQC in Asia

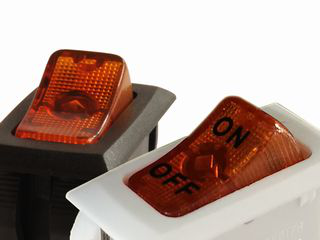

Classical outlook and crystal lighting effect
Hightest Rating up to 20A 125VAC(UL, CUL)

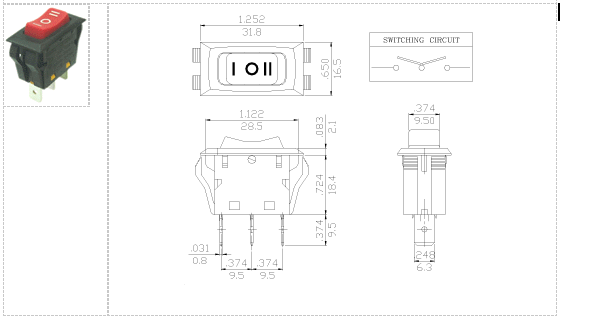

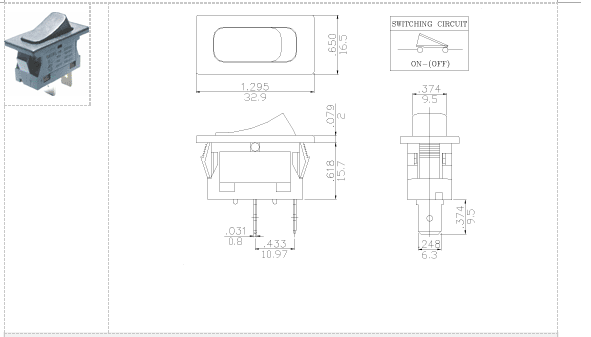

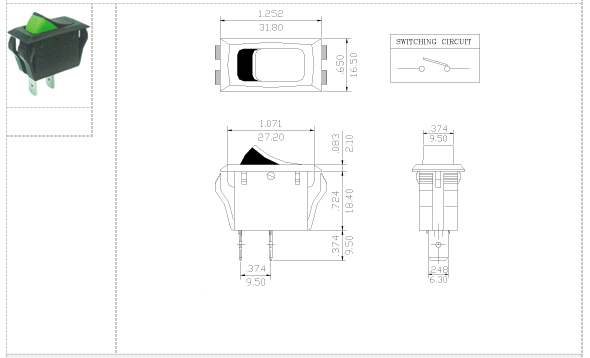

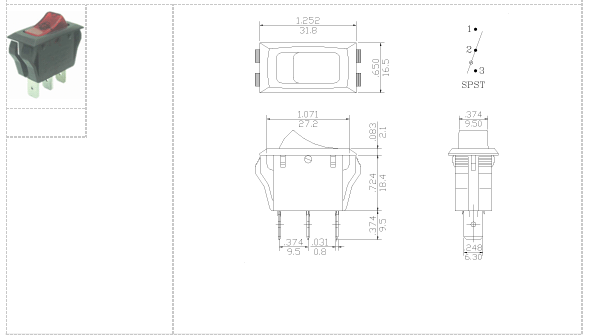

Standard 13.8 x 28.6mm snap-in cutout size
IP40 & IP42 splash protected type available
Twin colors actuator available

Specification
20A 125VAC / 16A 250VAC (UL,CUL)
6A 125VL, 3/4HP 250VAC(UL, CUL)
16(4) A 250VAC~T125 (VDE,ENEC, CQC)
Initial contact resistance : 20m ohm max.
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000VAC (UL), 3000 VAC(VDE) for 1 minute
Electrical Life: 6000 (UL); 10000 (VDE) cycles
