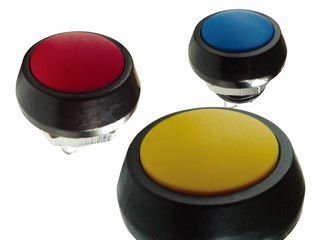

PB-12 Series
- 產品描述：PB-12 Series
IP67 All Plastic Round Mini Push Button Switches, Install by nut-tightening or snapin
產品介紹
PB-12 SeriesIP67 All Plastic Round Mini Push Button Switches, Install by nut-tightening or snapin
Water Protection Level up to IP67
3A 250VAC, Illuminated or Non-Illuminated
Momentary or Lock Position
All Plastic Round Mini Push Button Switches, Install by nut-tightening or snapin
Distinctive Knob Color for Easy Identification
3A 250VAC
Contact resistance: 50m Ω(max.) initial
Insulation resistance: 100M Ω (min)
Dielectric strength : 1,000VAC for 1 minute
Mechanical life: 500,000 cycles
Electrical life: 100,000 cycles
Features:
SPST OFF-(ON), OFF-ONIP67 protection level
Non-illuminated, spot & power marking illuminated

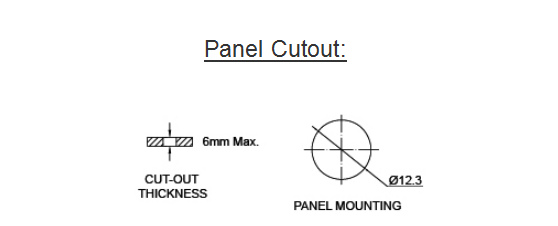

M12 bushing, screw mounting
Switch actuator / body material: Plastic
Solder, screw terminals
